AC/DC 12V SPST 20Amp 250Vac/30Vdc Power Relay Module, Plastic Enclosure and Pre-Wired
Product details
| Management number | 218086003 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218086003 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick. 2, Input control signal voltage AC 12V or DC 12V, current 75mA. When controlled by a DC signal, the two wires on the input end do not need to care about their polarities. 3, Output switch SPST (Single Pole Single Throw), rated current 20A / 250VAC or 20A / 30VDC. 4, This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. 5, Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
- Polycarbonate plastic enclosure with a NPT 1/2” mounting nipple, LED indicator and pre-wired for a money-saving installation that is easy and quick.
- Input control signal voltage AC 12V or DC 12V, current 75mA. When controlled by a DC signal, the two wires on the input end do not need to care about their polarities.
- Output switch SPST (Single Pole Single Throw), rated current 20A / 250VAC or 20A / 30VDC.
- This is a simple and practical passive relay module, which is very convenient to use. All wires lead out via 1/2” mounting nipple, it can be flexible mounting with your junction box / outlet box. Two screw mounting holes are convenient for you to fix it on the wall or wooden board.

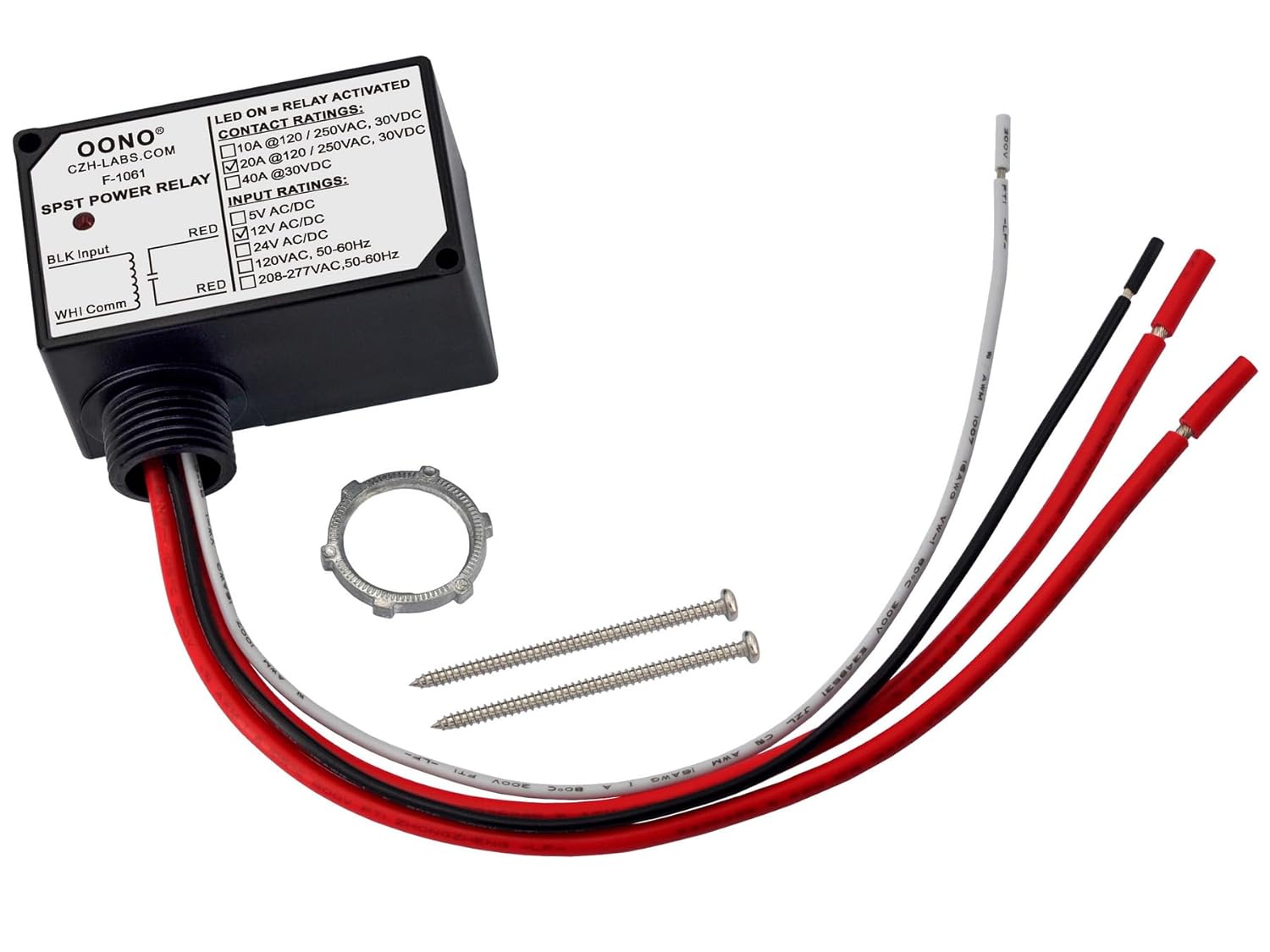

- Packing list: 1x relay module, 1x NPT 1/2” Zinc alloy conduit locknut, 2x M3x50mm screws.
| Brand Name | OONO |
|---|---|
| Part Number | F-1061 20Amp Series |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | CZH-LABS |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 20 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver" Or "Gold" Or "Copper Alloy |
| Number of Terminals | 3 |
| Maximum Switching Current | 20 Amps |
