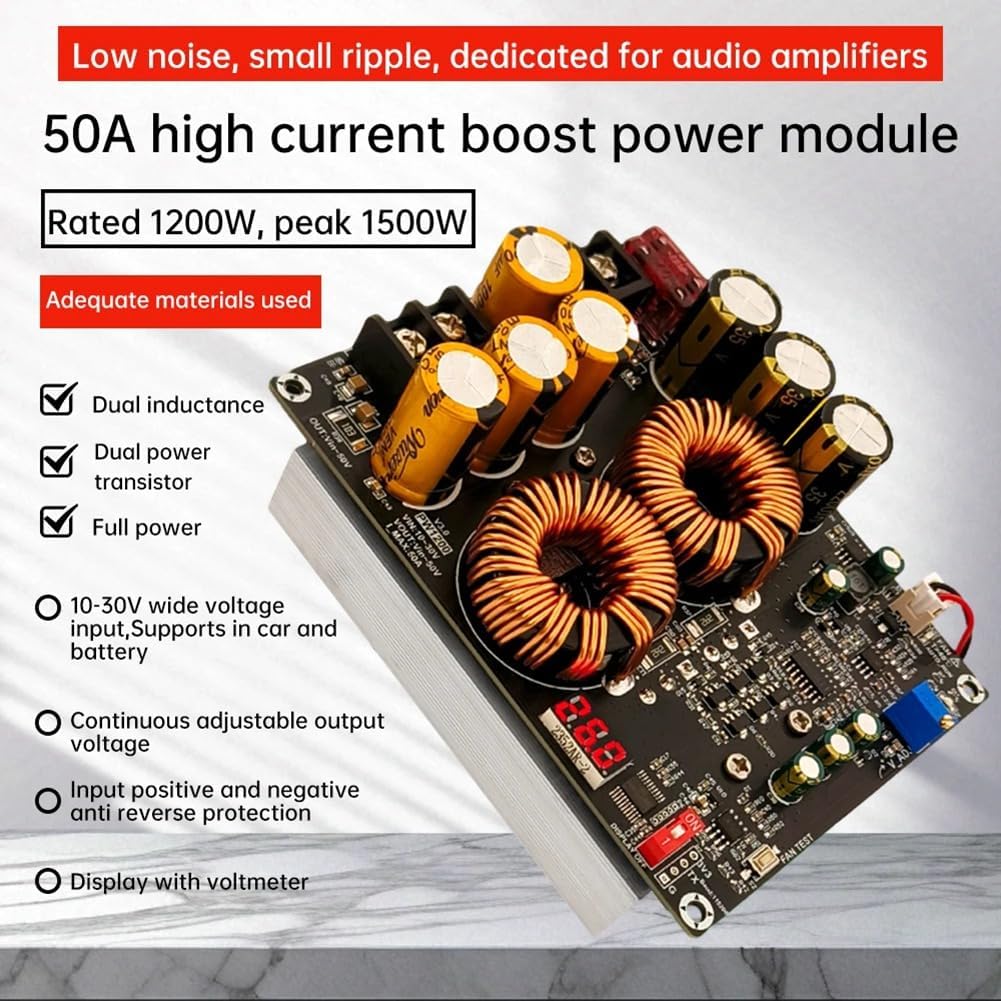

Audio Amplifier Power Supply Step Up Power Supply Module 1200W 50A Dual Inductor 10-30V to Vin-50V Adjustable Voltage Charger

Bloepum Parameter:Product name: 50A high current boost module (non-isolated)Supply voltage: DC10-30V, below 9V undervoltage protection, higher than 32V be damagedOutput voltage: Vin~50V, continuously adjustableOutput power: 1200W, 1500WInput current: Maximum 50A, current-limited protectionStatic operating current: 70mA@(Vin=20V Vout=48V) the higher the output voltage, the higher the static currentConversion efficiency: 92%-95Input anti-reverse protection: Yes, 290A, 1.2mOhm, T0247 package large MOS tubeUndervoltage protection: Yes, 9VOver-current protection: Yes, 50AOver-temperature protection: Yes, the substrate temperature exceeds 100 ℃.Heat dissipation: 60mm x 60mm fan air-cooled, increase the thickened 100 x 92 x 20mm heat sinksOutput voltage display: Yes, 0.1V, can be controlled off the displayTemperature control fan rotation conditions: substrate temperature over 40℃ fan Output ripple: no load ± 30mV, full load ± 600mVColor: BlackMaterial: ABSPackage Contents:1 x Audio amplifier power supplyOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• 2. Extremely low ripple output, optimized for high-fidelity audio amplifier equipment sound quality performance

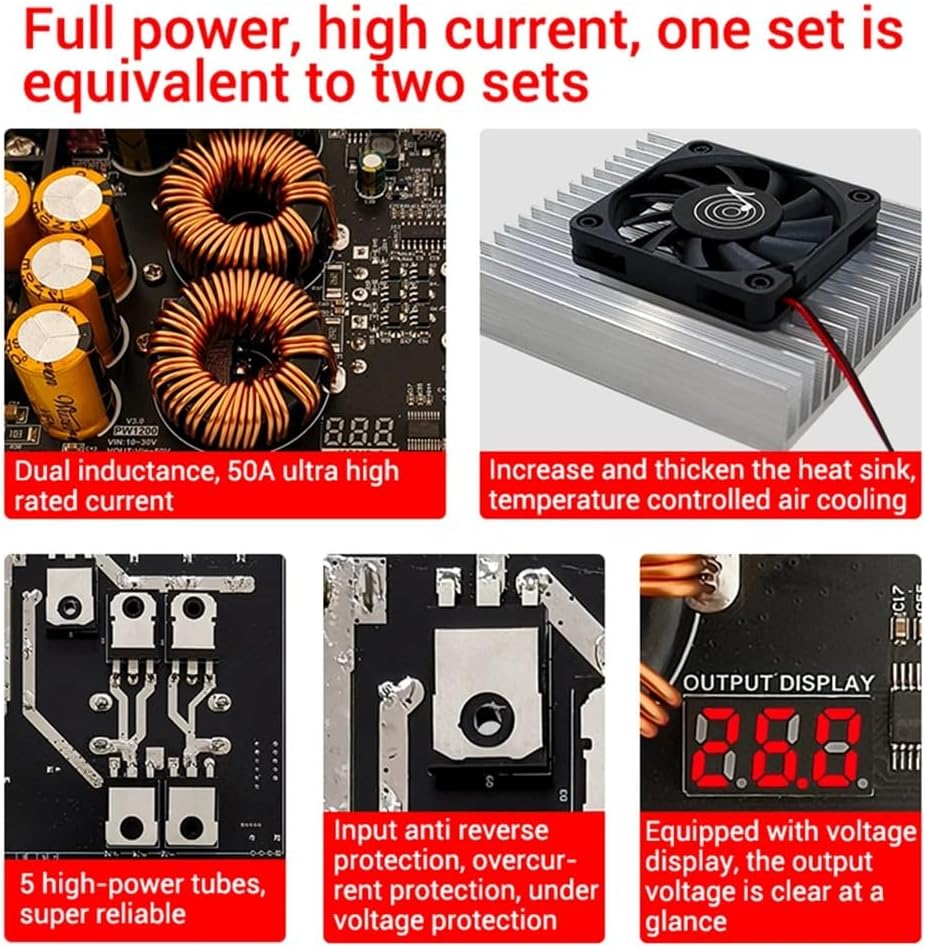

• Features: 1. Dual inductor design, to full power output, stable support for 1200W high-power applications
• 3. Maximum support for 50A high current, to meet the demanding needs of high-performance equipment on the current
• 4. Products with input anti-reverse connection protection, over-current protection, under-voltage protection
• 5. On-board voltage display, output voltage at a glance
